KLL Chokes
High power, high performance, low losses
Our high performance chokes were developed particularly for applications demanding a high efficiency and a compact design.
The Kaschke Low Loss Series features a high ripple current with small energy dissipation. Due to the low hysteresis, the chokes provide low loss solutions for applications such as Power Factor Correction and High DC bus voltage boost chokes e.g. in zero current switching mode and Resonant Chokes.

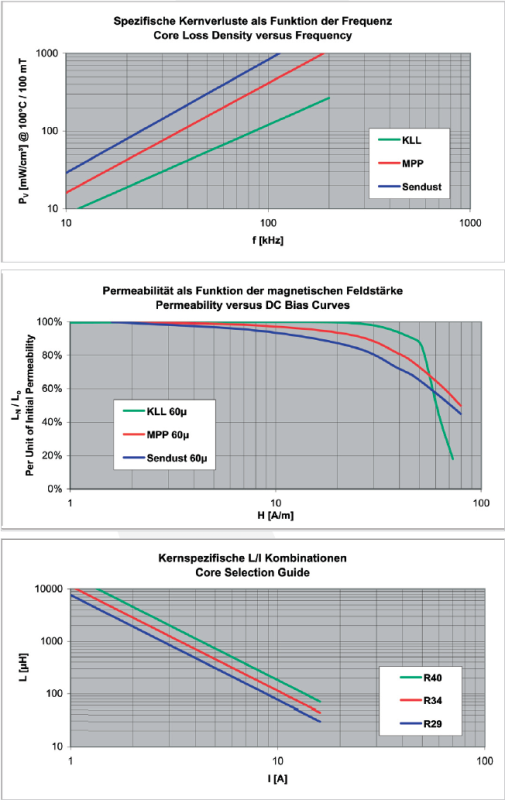

By using the Kaschke KLL chokes you gain the advantage of similar Sendust or MPP solutions, but at a far more competitive price.
Outstanding characteristics
- small hyteresis losses (also suitable for very high ripple currents)
- low parasitic capacity
- good EMV characteristics
- chokes available with auxiliary winding
- typical inductance values from 50 μH to 1 mH at application frequencies within the range of 30 kHz to 300 kHz and up to 15 A.
Base plates and potting boxes for the KLL chokes
| Chokes based on ring core R 29 | ||||
|---|---|---|---|---|
| Description | Nominal current | DCR | Nominal inductance | Ordner no. |

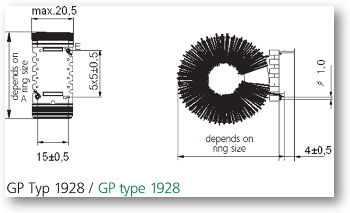

| [A] | [Ω] [±10%] | Ldc [μH] | GP 1928 | |
| KLL-R29 1,0-6,0 | 1 | 1,57 | 6000 | 153.600 |
| KLL-R29 2,0-1,3 | 2 | 0,36 | 1300 | 153.601 |
| KLL-R29 3,0-0,6 | 3 | 0,27 | 600 | 153.602 |
| KLL-R29 4,0-0,4 | 4 | 0,1 | 400 | 153.603 |
| KLL-R29 5,0-0,24 | 5 | 0,08 | 240 | 153.604 |
| KLL-R29 6,0-0,17 | 6 | 0,04 | 170 | 153.605 |
| KLL-R29 7,0-0,12 | 7 | 0,03 | 120 | 153.606 |
| KLL-R29 8,0-0,11 | 8 | 0,03 | 110 | 153.607 |
| KLL-R29 9,0-0,08 | 9 | 0,025 | 80 | 153.608 |
| KLL-R29 10,0-0,06 | 10 | 0,02 | 60 | 153.609 |
| Chokes based on ring R 34 | ||||||
|---|---|---|---|---|---|---|
| Description | Nominal current | DCR | Nominal Inductance | Order no. | Ordner no. | Order no. |
| [A] | [Ω] [±10%] | Ldc [μH] | VGH 1181 | GP 2002.x | VGH 1834 | |
| KLL-R34 1,0-10,8 | 1 | 2,2 | 10800 | 153.700 | 153.711 | 153.740 |
| KLL-R34 2,0-2,5 | 2 | 0,63 | 2500 | 153.701 | 153.712 | 153.741 |
| KLL-R34 3,0-1,2 | 3 | 0,34 | 1200 | 153.702 | 153.713 | 153.742 |
| KLL-R34 4,0-0,65 | 4 | 0,15 | 650 | 153.703 | 153.714 | 153.743 |
| KLL-R34 5,0-0,43 | 5 | 0,09 | 430 | 153.704 | 153.715 | 153.744 |
| KLL-R34 6,0-0,3 | 6 | 0,063 | 300 | 153.705 | 153.716 | 153.745 |
| KLL-R34 7,0-0,22 | 7 | 0,045 | 220 | 153.706 | 153.717 | 153.746 |
| KLL-R34 8,0-0,17 | 8 | 0,036 | 170 | 153.707 | 153.718 | 153.747 |
| KLL-R34 9,0-0,14 | 9 | 0,028 | 140 | 153.708 | 153.719 | 153.748 |
| KLL-R34 10-0,11 | 10 | 0,021 | 110 | 153.709 | 153.720 | 153.749 |
| KLL-R34 15-0,05 | 15 | 0,01 | 50 | 153.710 | 153.721 | 153.750 |
| Chokes based on ring R 40 | ||||
|---|---|---|---|---|
| Description | Nominal current | DCR | Nominal inductance | Order no. |
| [A] | [Ω] [±10%] | Ldc [μH] | GP 2002.x | |
| KLL-R40 2,0-3,5 | 2 | 0,5 | 3500 | 153.800 |
| KLL-R40 3,0-1,5 | 3 | 0,15 | 1500 | 153.801 |
| KLL-R40 4,0-0,9 | 4 | 0,14 | 900 | 153.802 |
| KLL-R40 5,0-0,5 | 5 | 0,09 | 500 | 153.803 |
| KLL-R40 6,0-0,4 | 6 | 0,06 | 400 | 153.804 |
| KLL-R40 7,0-0,28 | 7 | 0,05 | 280 | 153.805 |
| KLL-R40 8,0-0,2 | 8 | 0,04 | 200 | 153.806 |
| KLL-R40 9,0-0,17 | 9 | 0,03 | 170 | 153.807 |
| KLL-R40 10-0,14 | 10 | 0,02 | 140 | 153.808 |
| KLL-R40 15-0,06 | 15 | 0,009 | 60 | 153.809 |
